3820 美國Hausser Howard Mold霍華德霉菌計數板

霍華德霉菌計數板（Howard Mold Counting Chamber）：適用于清汁、濁汁、水、濃縮果汁中霍華德霉菌直接鏡檢計數（番茄汁/醬、馬鈴薯醬等）。該計數板又稱為“郝氏計測玻片”美國Hausser scientific血球計數板，霍華德霉菌計數板，準確計算白細胞、紅細胞、血小板、組織培養細胞、細菌和精子

3820 美國Hausser Howard Mold霍華德霉菌計數板

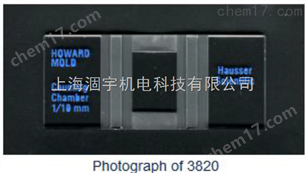

The Counting Chamber is of all glass construction. In the center of the slide is a rectangle 15 x 20 mm, which is flanked by shoulders on each side 0.1mm higher. The cover glass is supported on these shoulders and leaves a depth of 0.1mm between the underside of the cover glass and the rectangle. The rectangle and the cover glass have optically plane surfaces. To facilitate calibration of the microscope, the rectangle has two engraved parallel lines spaced 1.382mm apart.An accessory eyepiece micrometer is available which is ruled into squares, each of which is equal to 1/6 of the diameter of the eyepiece diaphragm opening. For mold counting, the microscope must give an area of 1.5 sq. mm.(circle 1.382 mm in diameter) at magnification of 90-125.

3820 美國Hausser Howard Mold霍華德霉菌計數板

Occasionally a blended mixture will contain particles of seed tissue that make it difficult to obtain Newton rings in preparing slide for mold counting. A clamp devised for holding cover slip in place to obviate this difficulty consists of metal plate with circular opening, 2.5 cm in diameter, in center of plate; 2 clips attached to anterior edge of plate fasten cover slip in position when slide is placed on plate.To clean the counting chamber: After completing the count, remove the cover glass and clean the counting chamber with
