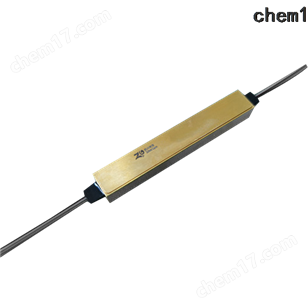

SOI芯片式高速多通道光衰減器
SOI Chip-based High Speed Multichannel VOA
SOI芯片式高速多通道光衰減器基于硅基載流子色散效應實現高速響應的可調光路衰減，實現多通道VOA器件單片化集成，芯片與多通道光纖陣列和外圍驅動電路一體化光電封裝，數字化驅動，偏振相關性小，衰減范圍大，調節精度高，衰減值穩定，響應時間為納秒級，可在高速、低時延系統中應用。
Multi-channel variable optical attenuators based on SOI platform is a new product, which is digitally driven to adjust the attenuation of multi-channel fiber optical paths. This product achieved the integration of a large number of VOA channels on a single SOI chip, and electro-optically co-packaged with fiber array and circuit board. It is capable of tiny polarization-sensitivity, large attenuation range, high adjustment accuracy, stable attenuation value, and especially high-speed response time on the order of nano-second. It is of great value for applications in some high-speed and low-time delay system.
〖性能指標Specifications〗
參數指標 Parameters
| 單位 Unit | 最小值 Min. | 典型值 Typ.
| 最大值 Max. | 備注 Notes |
波長范圍 Wavelength range | nm | 1530—1570 nm or 1270nm—1330 nm | |||
衰減范圍 Attenuation range
| dB | 20 | 25 | 40 | |
插入損耗 Insertion loss | dB | 0.8 | 1.2 | 2 | |
偏振相關損耗 PDL | dB | 0.3 | 0.5 | ||
衰減精度 Attenuation accuracy | dB | ±0.1 | |||
通道數 number of channels
| 8—16或可定制 8—16 or Can be customized | ||||
光功率 Transmission optical power | mW | 80或可定制 80 or Can be customized | |||
芯片級響應時間 Response Time | ns | 30 | 200 | 300 | |
工作溫度范圍 Operating temperature range | °C | -20 | 50 | ||
驅動電流 drive current
| mAAA | 45 | 60 | 20dB 衰減時 20dB attenuation time | |
驅動電壓 drive voltage
| V | 4.2 | 4.5 | 20dB 衰減時 20dB attenuation time | |
工作濕度范圍 Operating humidity range | % | +65 | |||
芯片尺寸 Chip Dimensions | mm | 15.5(L)×1.8(W)×0.5(H) | |||
ZG | 波長 Wavelength | 衰減大小 Attenuation size
| 通道數 Number of channels |
13=1310nm 15=1550nm | 1=20dB 2=40dB
| 1=1CH 4=4CH 8=8CH 16=CH 48=48CH XX=Other
|
sOI芯片式高速光衰減器
SOI芯片式高速光衰減器
四川梓冠光電科技有限公司
